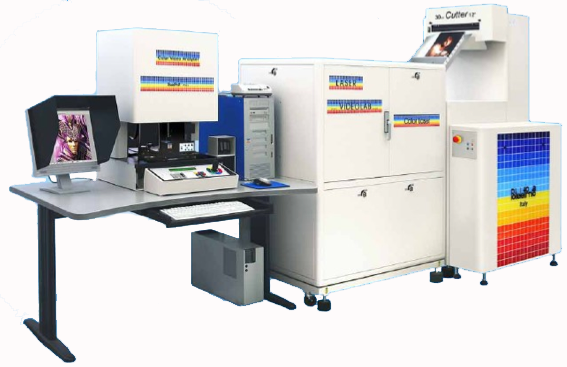

LaserLab 30cm - 12 in
The LaserLab 30-12" has been created to guarantee maximum professional quality. The consolidated experience of LaserLab 50 and LaserLab 76 is a reliable presentation for this digital integrated lab, with a maximum output of 305x500mm, 100 or 150m/h paper processors, and optional scanner.
Açıklama
| Download booklet |  |
The LaserLab 30-12" has been created to guarantee maximum professional quality. The consolidated experience of LaserLab 50 and LaserLab 76 is a reliable presentation for this digital integrated lab, with a maximum output of 305x500mm, 100 or 150m/h paper processors, and optional scanner.
Laser VideoLab key features
The word compromise does not exist at Polielettronica, the maximum in terms of quality and productivity are the only possible targets. Just for this the LasrLab is equipped with a solid state RGB laser unit, it is the only exposure system which allows the maximum in term of colour depth, colour separation, tone continuity and maximum details in the Highlights and Shadows. The Polielettronica 16bit/colour graphic processor guarantees the complete transfer of information from image to paper. The Laser alignment system and the optical transfer, through a single fiber optic developed at Polielettronica, guarantees the maximum quality of each of the 45,750,000 pixels needed to expose a 30x45cm. All this in 6 seconds!
- The paper is cut and positioned into the drum.
- The exposure unit starts to move on the air cushion and the mirror rotates to reflect every point on the paper.
- The laser unit converts the image data coming from the computer into a laser beam, then transfers it to the drum via fiber optic.
- The exposed paper is delivered to the paper processor, at the same time a new exposure begins from point 1.
- High speed professional scanner
- Up to 40 square meters per hour of processed paper
- Full colour management
- 305/254dpi On request up to 1016dpi
- Wide range of supported input file formats
- VReady for network printing (from file) with 1Gbit network adapter
- With or without scanner, 150m/h or 100m/h paper processor
More than a simple scanner
Quality
The Polielettronica Digital Imager is a tool designed for a professional and high quality result. Thanks to the variable light acquisition system, the image is always acquired inside the range of the sensor, preserving maximum colour detail in both shadows and highlights. The Rodenstock APO-Rodagon D 2X 75mm lens guarantees the transmission of every film detail to the 8 megapixel sensor; all this is mounted on a variable enlargement system, as to guarantee maximum information acquisitin regardless of film size. The system comes with a powerful computer that allows very quick acquisition times and real-time image correction.
Profiles and Colour ManagementThe Polielettronica Digital Imager has a complete colour management module. The VideoAnalyser v2 software can convert an embedded profile to an output profile, or simply ignore either. If necessary, it`s possible to assign a default profile for images coming from devices without colour management, while images with a profile embedded will be treated normally. The preview system uses both monitor and paper profile, and is always active. All options can be programmed to be repeated on every image processed.
SoftwareThe VideoAnalyser v2 software for the Digital Imager management is designed by Polielettronica, in order to guarantee fast tech support and constant development. The user interface is simple and intuitive, and with a few, simple operations it`s possible to scan, correct and save an image. An operator can be ready to provide a high quality production in a short time.
Video AnalyserThe scanner is an acquisition system that integrates a powerful video analyser. This system guarantees image correction professionally and in real time, thanks to Polielettronica`s technological experience. The joystick is the most appropriate tool for image correction, in accuracy, functions and ease of handling. With one button, the joystick is toggled between the standard density and colour correction to the contrast or gamma functions. All with a colour preview in real time, with no delays from the correction!
Image File CorrectionThe Video Analyser system can correct images from any digital device, like cameras or other scanners, in the same way as with internally acquired files. This is included in the basic packages. The system respects the embedded profile, if present, and converts it to the output profile if necessary. If it`s not present, a default profile can be assigned. Input formats supported: JPEG, TIFF, TIFF(CMYK), PSD, PDF, Macintosh PICT, PNG, PPM, JPEG2000, PhotoCD and many more..
Included Tools
- Red Eye Compensation: a quick tool to replace red pupils, just select the area containing the eye to be corrected.
- Cropping: quickly defines the print area and allows the selection of a part of the image.
- Dust and Scratches Autoremover: the Clean Image Mode automatically removes dust and scratches while saving the image file.
- Black and White with up to 10 customizable Sepia levels: with a single click it`s possible to switch to black and white mode, with or without sepia tone.
- Selective Colour Correction: for a complete and professional control of image tonalities.
- Sharp/Unsharp Mask: enhances image definition based on the grain and detail level of the original image.
- Colour Saturation, Depth, Hue, Contrast and Grain Filter: all easily customizable controls.
- Reference Images: up to 10 images can be stored to use as a reference for the subsequent corrections, for a more homogeneous production.
- Colour Memory and Grey Pointer: it`s possible to grab a sample color and use it to correct the next image. Slecting an area with the same colour tone, the rest of the image is balanced accordingly.
 |
 |
 |

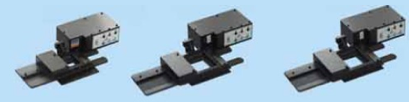

| Automatic Film Feed Units | Manual and Autofocus 135 Slide Film Carriers |
A Flexible Software for a Complete Machine
Packages? You can!
The software (included) contains a powerful tool for the generation of packages. Once generated, a package can be applied to the autoprint. Thus, printing a package requires the same effort as a single image. Clanders, Greeting Cards and Frames: the same package tool is able to create calendars, greeting cards and framed photos. It also includes the ability to insert customized text and logos on every image processed. Its extreme flexibility allows the generation of any kind of job necessary to satisfy your customers.
Software
The easy and friendly interface of ImageLab allows a quick setup of the LaserLab, both during installation and in daily use. A novice operator can be introduced easily to the use of this equipment, while an expert LaserLab user needs no further information. Automatic Calibration: LaserLab is calibrated automatically thanks to the software and densitometer (both included). A new type of paper never set up before can be automatically calibrated without manual corrections.
Profiles and Colour Management
The Polielettronica LaserLab has a complete colour management module. The LaserLab can convert the assgined profile to the output profile of the printer, or ignore both. If necessary, it`s possible to assign a default profile to images incoming from system without colour management, while images with colour profile while be treated normally. The preview system, calculated from the monitor and paper profiles, is always active. All options are easily programmable as to be repeated on every processed image.
Index Print
The Polielettronica ImageLab software automatically generates indexes on all orders. Thumbnail size, logo, image name and order can be customized.
Specifications
Exposure Section
Paper Widths: Contiguous from 127mm (5") to 508mm (20")
Productivity:
Printer: Table, UPS, paper box, densitometer (for calibration), paper box, paper processor, replenishment unit.
Computer:
Optionals
- Laser: R - G - B Solid State
- Definition: 305/254dpi
- Calibration and Exposure Data Processing: 16 bit/colour
- Optional: up to 1016dpi
- Drum Exposure System: guarantees maximum quality for each pixel (focus - overlapping - shape) on all exposed surface.
- Pure Black & White Kit: On request.
Paper Widths: Contiguous from 127mm (5") to 508mm (20")
Productivity:
|
|
Carta Paper
|
150m/h
|
100m/h
|
|
30x45
|
305
|
290p/h
|
200p/h
|
|
20x30
|
203
|
370p/h
|
295p/h
|
|
15x20
|
152
|
435p/h
|
435p/h
|
|
13x18
|
127
|
435p/h
|
435p/h
|
|
10x15
|
102
|
560p/h
|
560p/h
|
Printer: Table, UPS, paper box, densitometer (for calibration), paper box, paper processor, replenishment unit.
Computer:
- Software: Windows XP 64, ImageLab v5, antivirus, other utilities
- Digital Media Inputs/Outputs: DVD/CD reader, Floppy
- Input/Output Flow and Connections: 1Gbit network adapter, USB2 ports (up to 6 ports, front or back panel), IEEE 1394 ports.
- Processor: Intel (minimum 3,2GHz)
- Memory: 2 Gigabyte
- Storage: 2x Serial ATA 150 HDD 73Gb in Mirror (RAID 1)
- Case: High heat dissipation system
- Monitor: High Quality 18" EIZO monitor with calibration software installed.
- Network: HUB 3COM 1Gbit (10-100-1000) 5 ports, 1 x 15m UTP cable
- Full controll from the ImageLab v5 software, with windows for status and settings, and active status bar.
- Three settings channels (Normal, Transparent, Custom).
- Automatic low power mode enabled after processing the last print.
- Quick change from waterless to water processing.
- Custom control for temperatures, replenishment rates and speed for compatibility with many RA processes.
- Independent temperature controls for Developer, Bleach and Dryer.
- Calculation and control for evaporation.
- The replenishment (3x20 liters) and overflow (3x20 liters) tanks can easily be connected to centralized replenishment systems.
|
Tank volume (liters)
| ||
|---|---|---|
|
|
50 m/h
|
100m/h
|
|
Developer
|
2x14
|
19
|
|
Bleach
|
2x14
|
19
|
|
Stabilizer
|
3x19
|
3x14
|
Optionals
Everything that`s needed to operate the LaserLab 30 is included: the ImageLab v5 software, the densitometer and the computer. Here you will find several extras that can simplify the various operations of professional photographic production.

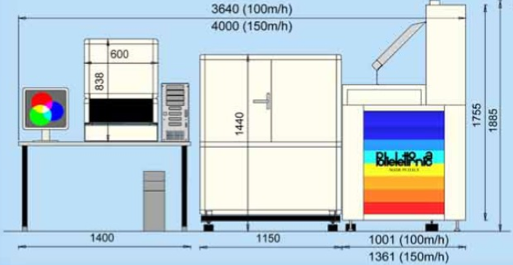

Air CompressorThe exposure unit of the LaserLab must be fed dry and filtered compressed air. If this cannot be done with the equipment in your laboratory, Polielettronica can supply an oil-free, microfiltered, dehumidified air compressinimensions (mm)
Note: the printer only version (without the scanner) can be delivered, on request, with a 900mm desk instead of a 1400mm one. The total length becomes 3140mm (for 100m/h processor) or 3500mm (for 150m/h processor)
