Frontier 590 Digital Lab System
Minilab Frontier 590 has a processing capacity of 1,800 prints per hour for a 4R size image. With a small footprint of only 1.4 square meters and a power consumption of only 296 kW per hour.
Açıklama
| Download Frontier 590 booklet |  |
Minilab Frontier 590 has a processing capacity of 1,800 prints per hour for a 4R size image. With a small footprint of only 1.4 square meters and a power consumption of only 296 kW per hour.
Frontier 590 Digital Lab System
| Fujifilm Digital Minilab Frontier 590 Main Specifications | ||||
|---|---|---|---|---|
|
|
Input source
|
Print sizes
|
paper widths
|
Frontier 590
|
|
Processing capacity
|
135
|
3R
|
5"
|
Approx. 1800 prints/hr
|
|
4R
|
6"
|
Approx. 1800 prints/hr
|
||
|
12R
|
12"
|
Approx. 100 prints/hr
|
||
|
Advanced Photo System (IX240)
|
3R C/H/P-mixed-format prin
25 exp. roll and index print |
3.5"
|
Approx. 50 rolls/hr
|
|
|
Media prints (digital still cameras with 2.5 millions pixels)
|
3R
|
5"
|
Approx. 1800 prints/hr
|
|
|
|
4R
|
6"
|
Approx. 1700 prints/hr
|
|
|
135
|
3R
|
5"
|
Approx. 2550 prints/hr
|
|
|
Processor Capacity (Maximum capacity)
|
|
4R
|
6"
|
Approx. 2400 prints/hr
|
|
Printable films (using standard or optional film carriers)
|
|
|||
|
Print sizes
Processing chemicals |
3.5"x5" - 12"x18"
Chemical system CP-49E |
|||
|

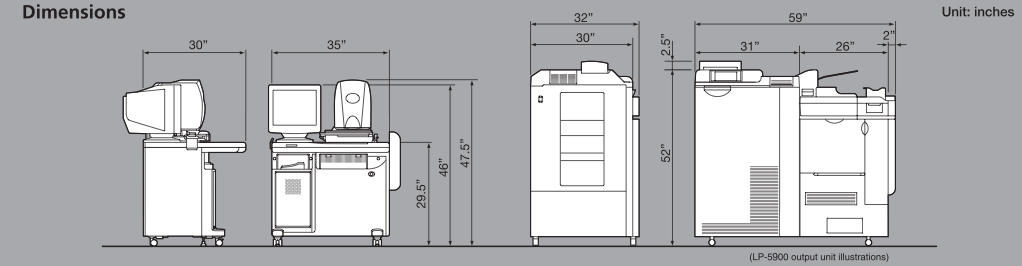

Footprint space
|
|
|||
| SCANNER & IMAGE PROCESSOR Frontier 550, Frontier 570 and Frontier 590 (SP-3000) (Input unit) | LASER PRINTER/PAPER PROCESSOR Frontier 550 (LP-5500), Frontier 570 (LP-5700) and Frontier 590 (LP-5900) (Output unit) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frontier 590 Features (High performance model)
- Processing capacity (actual production) 1,800 prints/hour(4R size)
- Single-order processing time: 2` 19" (24 prints/4R size)
- Footprint (output unit) 1.4 m2
- Processor capacity (maximum capacity) 2,400 prints (4R size) per hour.
- Print sorter: 24 orders
- Power consumption 296kWh*
Large 12-inch-wide prints
The Frontier 550/570/590 are set up to produce large-size prints used by professional photographers – up to 12x18 inches – enabling you to offer services to this segment of the market. Even at large dimensions, the prints have beautiful image quality and crisp, clear resolution.
Self-diagnostic system
The Frontier 550/570/590 run continuous self-diagnostic routines during the course of ordinary operation, and full diagnostic information is available in real time. Potential problems trigger an onscreen alert, so that they can be dealt with as quickly as possible.
More processing capacity in less space
Despite their greater processing capacities, the Frontier 550/570/590 are more compact than their predecessors (Frontier 350/370/390). They also allow greater flexibility in your shop`s floor layout thanks to their three-sided maintenance configurations – all maintenance operations can be done from the front or the sides, and there`s no need to access the back of the unit. Either unit can be placed against a wall, freeing up floor space for other uses, or allowing you to fit the Frontier into a smaller room to begin with.
24-, 14- and 7-order sorters
 |
 |
 |
| 7-order sorter | 14-order sorter | 24-order sorter |
The Frontier 550 is available with a 7-order sorter, while the Frontier 570/590 offers a choice of either a 14- or 24-order sorter. The top-mounting of the 7- and 14-order sorters eliminates the need for additional footprint space.
Energy-saving design
Along with engineering improvements, the energy-consumption profile of the output units has been readjusted and optimized to reflect the most common usage patterns. The end result is an energy savings of approximately 50% in energy-saving
mode, and approx. 35-45% in standard mode, compared with the previous model (Frontier 370).
12-inch double paper magazine
Strongly recommended as the optimum color print paper for the Frontier series, Fujicolor Crystal Archive Paper paper offers faster results along with superior print quality.
CP-49E chemical system
The CP-49E chemical system guarantees time-saving efficiency. One-touch chemical mixing provides simple, clean and safe processing.
Frontier 550/570/590 with high-speed processing technology
Starting with the high-speed, high-precision scanner, the Frontier 550/570/590 have been engineered for greater productivity. Other elements include the high-speed conveyor belt, the highly efficient multi-path chemical processing system, and the fast yet energy-efficient drying system. Sharp, high-resolution images and pure, vivid colors are provided by the Fujifilm-developed high-speed laser exposure unit.
Image Intelligence
New face detection technology adjusts contrast and color so that faces stand out and background scenery elements appear bright and clear. The result is attractive, natural-looking portraits and people photos.
Improved red-eye correction feature provides fully automatic detection and correction of unsightly red-eye on color negatives or digital images. A red-eye mark on index prints indicates frames that have been corrected.
Increase capacity with multiple Imaging Controller (DIC II) units
The CP-49E chemical system guarantees time-saving efficiency. One-touch chemical mixing provides simple, clean and safe processing.
